5”x10” Rectangular Permanent Magnetic Chuck Surface Grinder For Grinding Machine

5”x10” Rectangular Permanent Magnetic Chuck High Precision For Grinding Machine




125*250mm Surface Grinder Permanent Magnetic Chuck

Specifications:

--Model: 125 * 250mm(5”x10”)

--Chuck height: 45mm

--Pole pitch: 1.5+0.5mm（2mm）
--Copper strip length: 210mm

--Copper strip height: 20mm

--Item Weight approx: 12.5kg

Features:

--Applicable to grinding machines, EDM EDM, line cutting, tapping machines, bench drill and other processing.

--Magnetic pole gap fine, uniform magnetic force, small workpiece processing, the effect is particularly evident.

--Internal special design, can extend the service life.

--The main structure is stable, high precision.

--Tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for magnetic sucker.

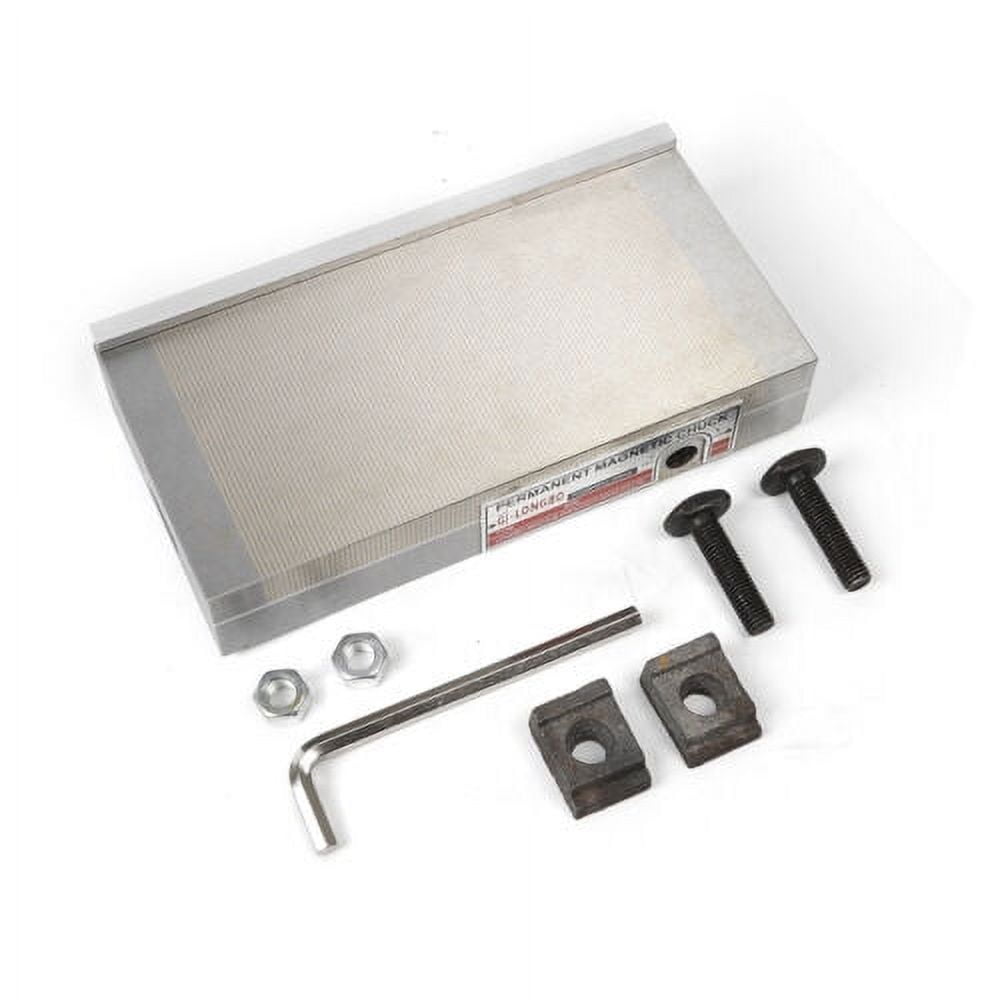

Packages:

1 x Magnetic Chuck

1 x Handle

Set of Screws
