VEVOR Cable Wire Stripping Machine 1.5mm-20mm Wire Stripping Machine 10 Channels Wire Stripping Machine Tool Manual Hand Cranked Industrial Wire Stripping Recycle

Brand Introduction

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
    1.Tough Quality Assurance
    2.Incredibly Low Prices
    3.Fast & Secure Delivery
    4.30-Day Free Returns
    5.24/7 Professional Customer Service

Product Description

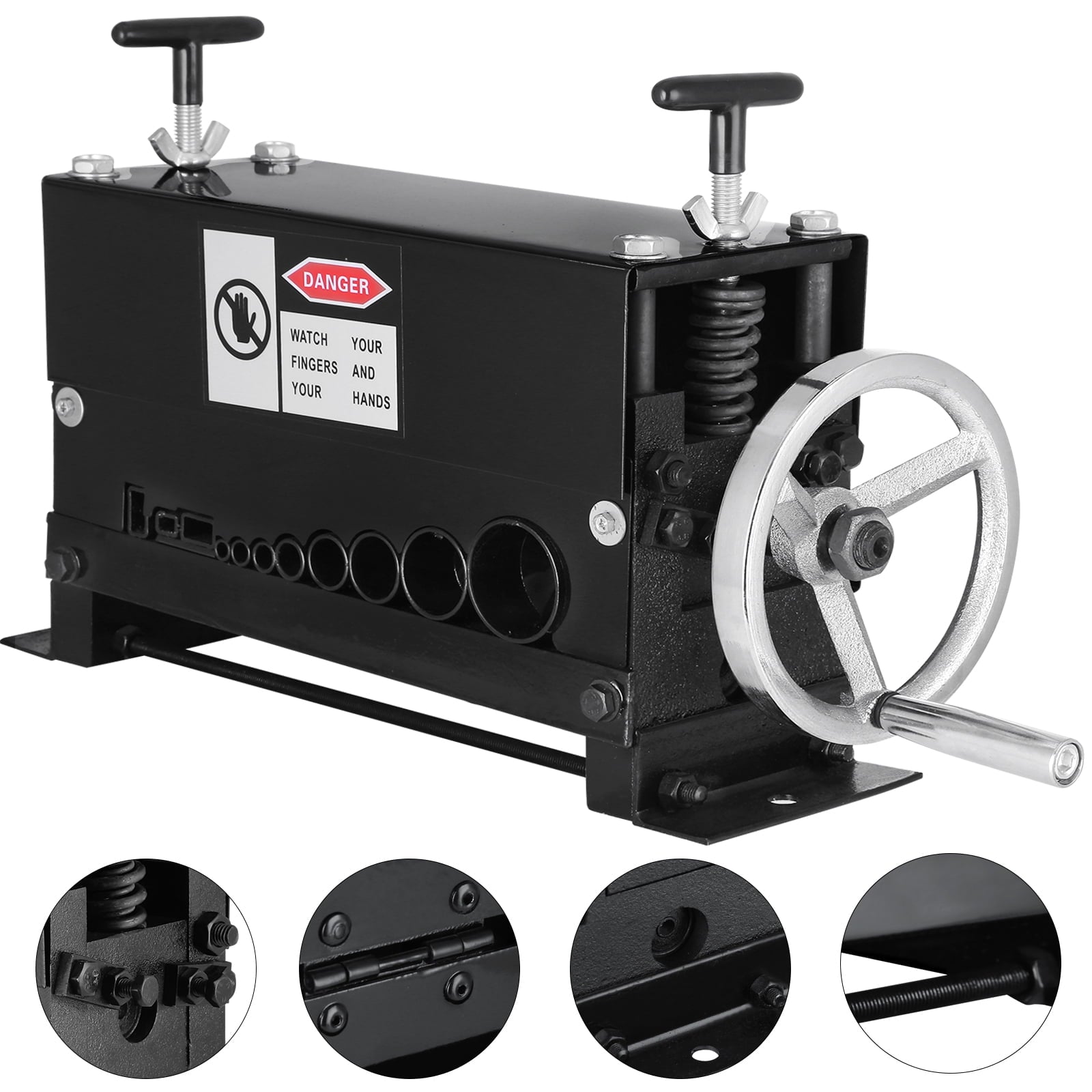

Manual Hand Cranked Industrial Wire Stripping Machine
The Manual Wire Stripping Machine features 11 channels of cutting wheels for stripping scrap copper wire. It strips wire form 1.5mm up to 38mm diameter. Generally speaking, this machine can remove the plastic and rubber insulation from undamaged scrap wire, recycle copper wire and benefit from non-insulated pure copper wire.
Stable & Durable
Portable and heavy-duty design to ensure safety. Made of durable metal material. Easy to operate with two installation holes.
Fully Blades Protection
10 blades are of high hardness, to be anti-rust—fast stripping speed. The housing is used to protect the blade from damage.
Sufficient Stripping Force
Stripping Capacity: 1.5mm - 38mm / 0.06"-1.5". Ergonomic hatchback design, adjustable two screws. The cutting force of this machine can be adjusted by regulating the distance between shafts through-bolts adjustment.
11 Cutting Channels
Includes both flat slot and round channels for stripping scrap copper wire and accommodate a variety of wire sizes.
Adjustable Handle
It cut the necessary depth within the ring gear. The drive is manually carried on by the supplied handwheel.
Various Application
The manual wire stripper is able to strip round wires and flat wires of various specifications.

Specifications

Wire gauge range: 1.5mm - 38mm / 0.06"-1.5"
Channels of Cutters:11
Cutting Blades:10
Overall Dimensions with handle: 520 x 135 x 290 mm / 20.47" x 5.31" x 11.42"
Weight: 22kg / 48.5lb
A: flat cable feeding hole
B: 1.5~6mm diameter feeding hole
C: 6.0~9.0 diameter feeding hole
D: 9.0~13mm diameter feeding hole
E: 13.0~16.0mm diameter feeding hole
F: 16.0~19.0 diameter feeding hole
G: 19.0~24mm diameter feeding hole
H: 24~28 mm diameter feeding hole
I: 28~38 diameter feeding hole
Package size:
Length: 52cm / 20.47 inch
Width: 14cm / 5.51 inch
Height: 29cm / 11.42 inch

Package Content

1 x Wire Stripping Machine

Specifications

Assembled Product Dimensions (L x W x H): 16.50 x 4.50 x 9.00 Inches
